AIRBEST

Airbest Integrated Vacuum Generator

AZK

Airbest AZK vacuum generator

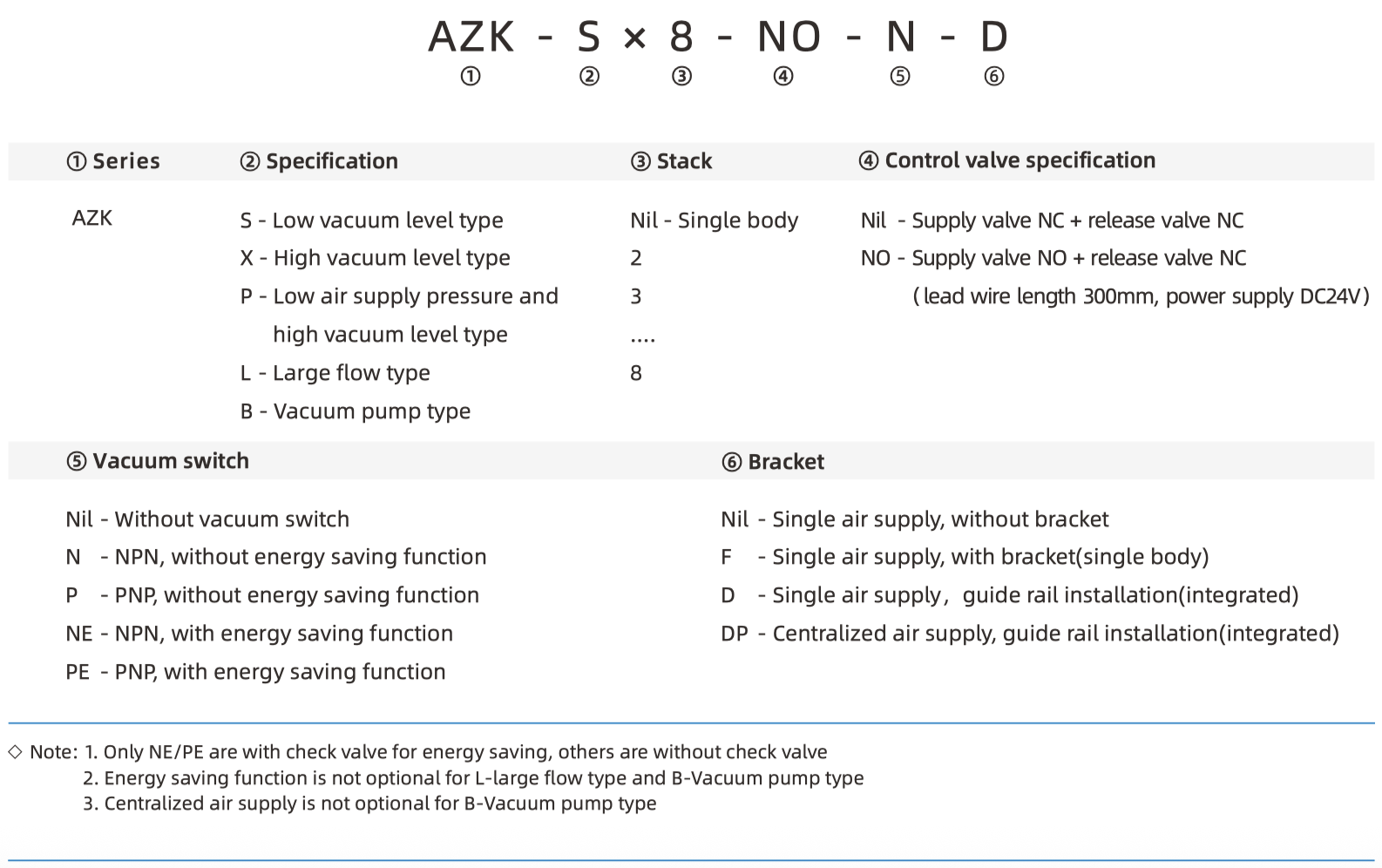

How To Order

AZK Part Number

Features

  • Energy-efficient nozzle design
  • With energy-saving control device
  • With normally open vacuum supply valve
  • Small size and light weight. The volume is 85cm³
  • Transparent filter housing
  • Single body with L bracket, DIN guide rail installation for integrated body, centralized air supply

Advantages

  • Vacuum flow increased by 50% and air consumption decreased by 30%
  • Air consumption reduced by 90%(compared with non-energy saving type)
  • Power outage or power off does not affect vacuum producing and prevent the workpiece from falling
  • The device is compact and can be installed directly in the handling system
  • The cleanliness is visible and easy to replace
  • Simple installation, can be installed directly on the distribution box

Applications

  •  Integrated vacuum generator for handling airtight and slightly porous workpieces
  • Vacuum producing and monitoring in automation systems
  • For robot handling applications and linear axes
  • Pick and place applications with very short time
  • Used for systems that require high dynamic handling of workpieces and with limited space
  • Usually used for handling small parts in fully automated systems

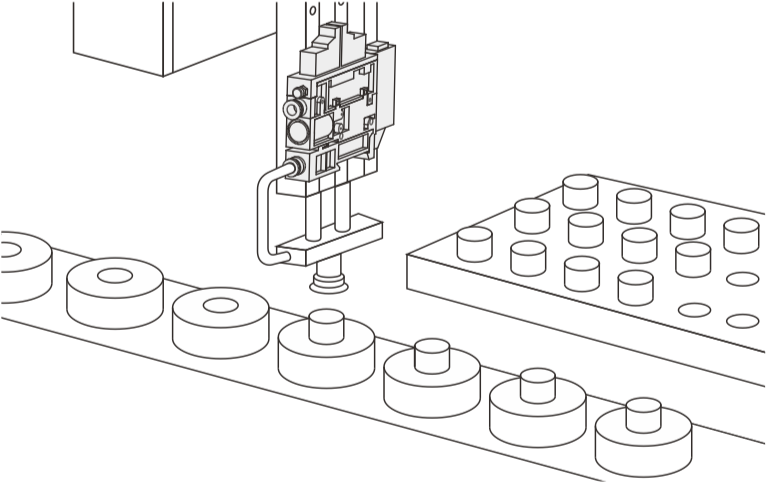

Application

AZK Application
